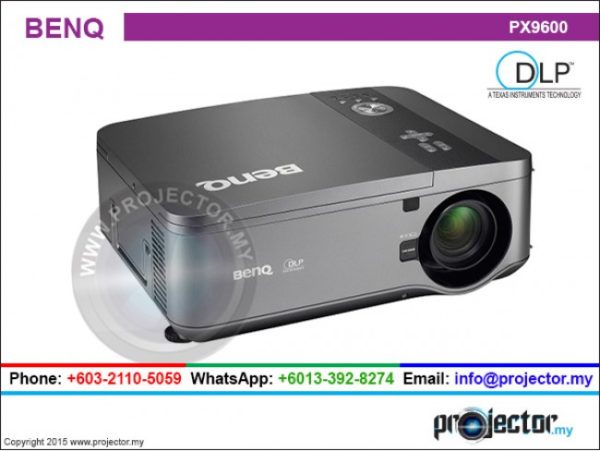

PX9600 XGA


HV Motorized Lens Shift, Motorized Focus / Zoom, 360 degree projection, Changeable Colour wheel
(4 and 6 segment), LAN Control



Brilliant and Reliable Choice for Large Venue Installation

With seven types of optical lenses available and the functions as motorized zoom and focus and motorized lens shift, BenQ PX9600 offers great installtion and set-up flexibility. It also gives you brilliant image performance with ultra high brightness, high contrast ratio and high resolution. Interchangeable color wheel system gives you a choice to boost mid-tone colors for a more life-like picture.


Projection System DLP
Native Resolution XGA (1024 x 768)
Brightness* (ANSI Lumens) 6500 / 5700 lmns (Dual lamp, Standard lens)
Contrast Ratio 2800:1
Display Color 1.07 Billion Colors
Lens Wide Fix (5J.JAM37.011) F=1.85, f=11.6mm
Ultra Wide (5J.JAM37.061) F=1.96-2.3
Wide Zoom (5J.JAM37.021) F=1.85-2.5, f=18.7-26.5mm
Standard (5J.JAM37.001) F=1.64-1.86, f=26-34mm
Semi Long (5J.JAM37.051) F=1.86-2.48, f=32.9-54.2mm
Long Zoom1 (5J.JAM37.031) F=1.86-2.41, f=52.8-79.1mm
Long Zoom2 (5J.JAM37.041) F=1.85-2.48, f=78.5-121.9mm
Aspect Ratio Native 4:3/ 16:10 (5 aspect ratio selectable)
Throw Ratio Wide Fix (5J.JAM37.011) 0.79:1
Ultra Wide (5J.JAM37.061) 0.77-0.97:1
Wide Zoom (5J.JAM37.021) 1.3-1.85:1
Standard (5J.JAM37.001) 1.79-2.35:1
Semi Long (5J.JAM37.051) 2.3-3.81:1
Long Zoom1 (5J.JAM37.031) 3.71-5.57:1
Long Zoom2 (5J.JAM37.041) 5.5-8.56:1
Image Size (Diagonal) 80″~500″
Zoom Ratio Wide Fix (5J.JAM37.011) Fixed
Ultra Wide (5J.JAM37.061) 1.25:1
Wide Zoom (5J.JAM37.021) 1.41:1
Standard (5J.JAM37.001) 1.3:1
Semi Long (5J.JAM37.051) 1.65:1
Long Zoom1 (5J.JAM37.031) 1.5:1
Long Zoom2 (5J.JAM37.041) 1.55:1
Lamp Type 280W x 2
Lamp Mode (Normal/Economic/SmartEco)* 2000/2500 hours
Keystone Adjustment Vertical ± 30 degrees
Lens Shift Wide Fix (5J.JAM37.011) NA
Ultra Wide (5J.JAM37.061) 0-45% Vertical; ± 10% Horizontal
Wide Zoom (5J.JAM37.021) 0-50% Vertical; ± 10% Horizontal
Standard (5J.JAM37.001) 0-50% Vertical; ± 10% Horizontal
Semi Long (5J.JAM37.051) 0-50% Vertical; ± 10% Horizontal
Long Zoom1 (5J.JAM37.031) 0-50% Vertical; ± 10% Horizontal
Long Zoom2 (5J.JAM37.041) 0-50% Vertical; ± 10% Horizontal
Resolution Support VGA(640 x 480) to WUXGA_RB(1920X1200) *RB=Reduced blanking
Horizontal Frequency 31K-92KHz
Vertical Scan Rate 23-85Hz
Interface Computer 1 in (D-sub 15pin) x 1
Computer 2 in (5BNC, R/G/B/H/V) x 1
Monitor out (D-sub 15pin) x 1
DVI-D in x 1
Component Video in (Y/Pb/Pr) x 1
Composite Video in (RCA) x 1
S-Video in (Mini Din 4 pin) x 1
LAN (RJ45) x 1 (LAN Control)
USB (Type Mini B) x 1 (Download)
12V Trigger x 1
RS232 (DB-9pin) x 1
Wired Remote x 1
IR Receiver x 2 (Front+Rear)
Dimensions (W x H x D mm) 505 x 194 x 385 mm
HDTV Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility NTSC, PAL, SECAM
Audible Noise (Normal/Economic Mode) 39 /34 /35/ 32 db (Dual laml normal / Dual lamp eco / Single lamp normal / Singal lamp eco)
On-Screen Display Languages English/ Traditional Chinese/ French/ Spain/ Deutch/ Italian/ Simplified Chinese/ Korean/ Jananese / РУССКИЙ/Portuguese/ svenska (12 Languages)
Picture Modes Presentation/Standard/Game/Movie/sRGB
Accessories (Standard) Remote Control w/ Battery 6 Segments Color Wheel Power Cord (by region) User Manual CD Quick Start Guide Warranty Card (by region) VGA (D-sub 15pin) Cable
Accessories (Optional) Spare Lamp Kit 5J.JAM05.001
Ceilling Mount 5J.JAM10.001
Optional Lens
Wide Fix(5J.JAM37.011)
Ultra Wide (5J.JAM37.061)
Wide Zoom(5J.JAM37.021)
Semi Long(5J.JAM37.051)
Long Zoom1(5J.JAM37.031)
Long Zoom2 (5J.JAM37.041)
Environmental Notice Lamp in this product contains mercury.
To dispose of the product or used lamps, consult your local environment authorities for regulations or see www.lamprecycle.org.
Model Number PX9600
Power Supply AC100 V, 7.2A, 50 to 60 Hz
AC 220-240 V, 2.9A, 50 to 60 Hz
Power Consumption AC100 V, 710W (Standby Power <0.5W)
AC 220-240 V, 670W (Standby Power <0.5W)
Weight 16.5KG (Without lens)
